Size:15*10*10
Fiber Type:Single Mode
Compatible:Huawei,Cisco,Dell Force10
Connector Type:LC/UPC
Item Length:1m
Model Number:PBTSFP+-LRA/B ERA/B 60A/B
Origin:Mainland China
Certification:CE,RoHS
Rate:10G SFP Module
Distance:20KM 40KM 60LM Optional
Warranty::3Years
Connector:LC/UPC
name:SFP Transceiver
1:10G sfp Transcevier
2:10G SFP
items:10G sfp module
3:SFP Transceiver
4:10G sfp module

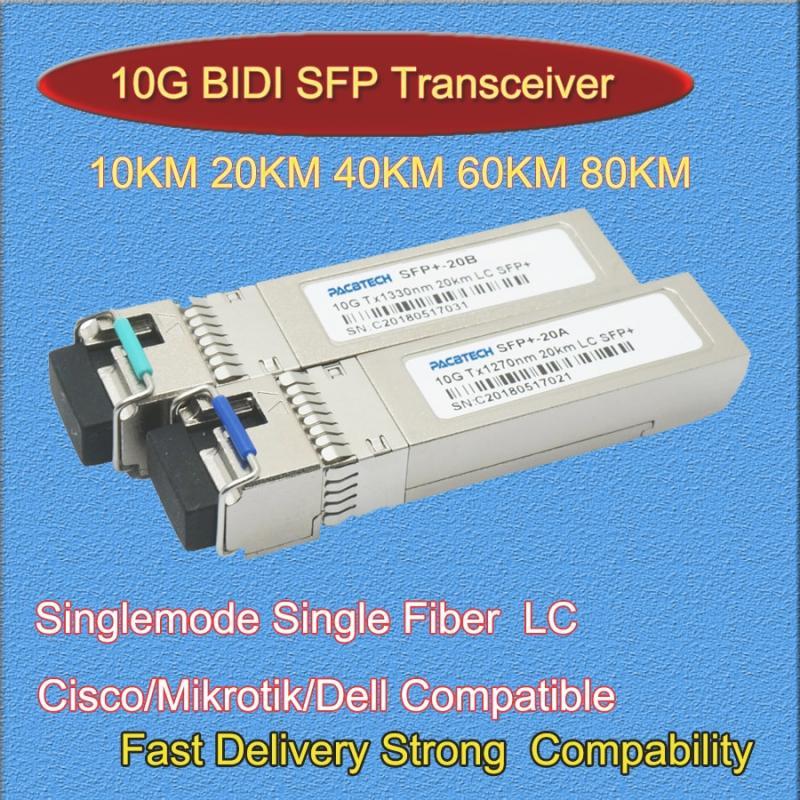

10G WDM SFP+ LC 3km 10km 20km 40km 60km 80km 100km Optional
Wavelenth ：
1270nm/1330nm for 3km 10km 20km 40km 60km
1490nm/1550nm for 80km 100km
Singlemode Single Fiber LC Connector
The price is for 2pcs ( 1Transmitter +1Receiver )
Product Features
●Supports 9.95 to 10.3Gb/s bit rates
●Simplex LC Connector
●Hot pluggable SFP+ footprint
●Uncooled 1310nm LD transmitter, 1310nm PIN photo-detector
●Applicable for 3km SMF connection
●Low power consumption,
●Digital Diagnostic Monitor Interface
●Optical interface compliant to IEEE 802.3ae 10GBASE-LR
●Electrical interface compliant to SFF-8431
●Operating case temperature: Commerical:0 to 70 °C
Applications
●10GBASE- at 10.3125Gbps
●10GBASE at 9.953Gbps
●Other optical link
Product Descriptions
10G single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The Hilinktech module is designed for single mode fiber and operates at a nominal wavelength 1310nm; The transmitter section meet the class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions fortelecommunication.
Order Information
10G SFP+ Single Fiber
PAC-SFP+-3A         10G 1270nm/1330nm 3km
PAC-SFP+-3B     10G 1330nm/1270nm 3km
PAC-SFP+-10A 10G 1270nm/1330nm 10km
PAC-SFP+-10B 10G 1330nm/1270nm 10km
PAC-SFP+-20A 10G 1270nm/1330nm 20km
PAC-SFP+-20B 10G 1330nm/1270nm 20km
PAC-SFP+-40A 10G 1270nm/1330nm 40km
PAC-SFP+-40B 10G 1330nm/1270nm 40km
PAC-SFP+-60A 10G 1270nm/1330nm 60km
PAC-SFP+-60B 10G 1330nm/1270nm 60km
PAC-SFP+-70A 10G 1270nm/1330nm 70km
PAC-SFP+-70B 10G 1330nm/1270nm 70km
PAC-SFP+-80A 10G 1490nm/1550nm 80km
PAC-SFP+-80B 10G 1550nm/1490nm 80km
PAC-SFP+-100A 10G 1490nm/1550nm 100km
PAC-SFP+-100B 10G 1550nm/1490nm 100km
SFP Programmer
It can be used for  SFP/SFP28/40G/100G QSFP/XFP Code Programmer
Picture :
Software:
Step -1：  Install the Programmer PCB to your computer
Step -2: We will screen like follows
