is_customized:Yes
Output Current:5A10A 20A 30A 40A 50A
Output Type:single
Output Power:1 - 200KW
Model Number:DC/DC Converters
Type:DC/DC Converters
Origin:Mainland China
Certification:CE,FCC,RoHS,UL,pse
Size:Different
Weight:280G/650G/1000G/1600g
Categories:DC DC Car Step Down Reducer 40-90V to 12V/13.8V 10 AMP
Application:48V/60V/72V vehicles
Line regulation:±0.2%
Load regulation:±0.2%
Temperature coefficient:±0.03%/°C
Cooling:free air convection
Enclosures:IP68
Warranty:2 - 3 years

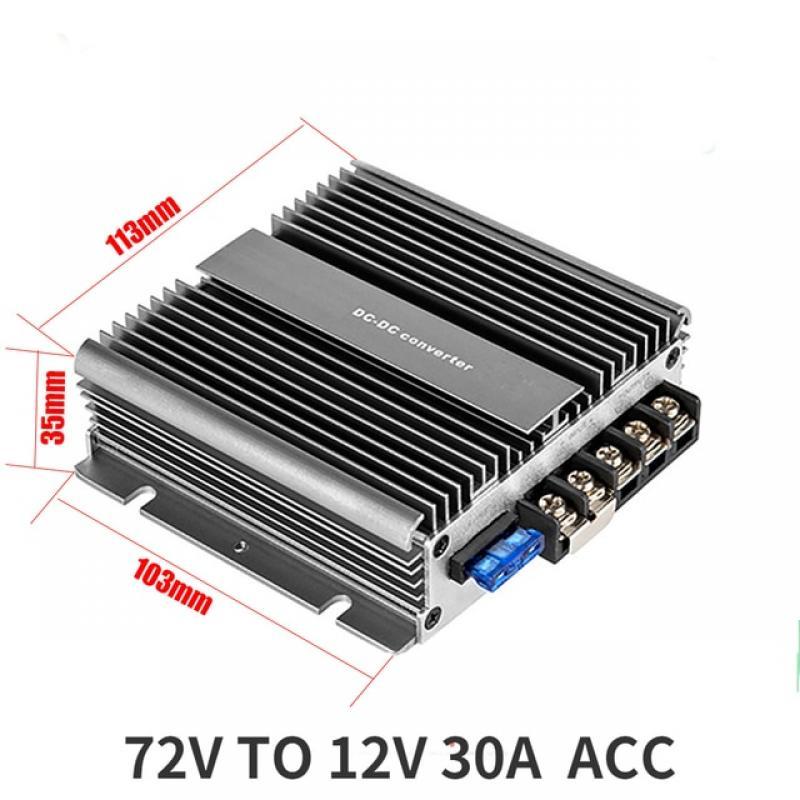

80V to 13.8VDC 10AMP 48V 60V 72V to 13.8V 10A 40V-90V TO 12V 10A 20A 30A 40A 50A DC DC Step Down Switching Converter CE
Input power can 48V, 60V, 72V Battery.
Product Description
Wide input voltage from 40 to 90V
Stable output voltage is 12V/13.8V
100% full rated power
100% full stable output current
100% burn-in test
High-efficiency up to 95%
Waterproof sealed
Cooling by free air convection
Surface mountable
2 - 3 years warranty
Over-current, over-voltage protections
Over-temperature
INSTALLATION STEPS
FOUR TERMINAL WIRING:
Input + to Battery +, Input- to Battery-.
Output + to Load +, Output- to Load-.
ACC is a state in which the car can still listen to songs and air conditioners without a fire, mainly to achieve energy saving and emission reduction.At the same time,
this is equivalent to a switch, when the switch is off, the converter does not work.
FIVE TERMINAL WIRING:
ACC to Switch/Ignition
Input + to Battery +, Input- to Battery-.
Output + to Load +, Output- to Load-.
If no need the ACC function, then use clamp insert ACC and INPUT+
Notes:
Please connect the polarity correctly,
or the converter will be burnt.
This DC/DC Converter can't work as solar controller
or wind controller.
