Controller:GRBL
Is Smart Device:YES
Model Number:4540 pro max
Condition:New
CNC or Not:CNC
Origin:Mainland China
Certification:CE
Spindle:500W spindle motor 48V 11000r/min
Engraving area:430*390*90mm
Countertop material:Aluminum / Fiberboard
Laser module:0/20W/40W
Stepper motor:42 x 48mm motor 0.55N.m
Power Supply:48v 10.4A
Construction:All Aluminum
For:Milling Machine Laser Engraver
Package Included：
A Style : Aluminum worktop Engraving Machine
B Style : Fiberboard worktop Engraving Machine
Standard(no laser) : 1pcs 4540 with 500w spindle+1pcs Touchscreen Offline Controller+4pcs Clamps+10pcs Cutter+1pcs Z-probe+1pcs U disk+1pcs Product Manual [English Version]
With 20w Laser : Standard+20 laser module
With 40w Laser : Standard+40w laser module+10pcs corn milling cutter（Free gift）

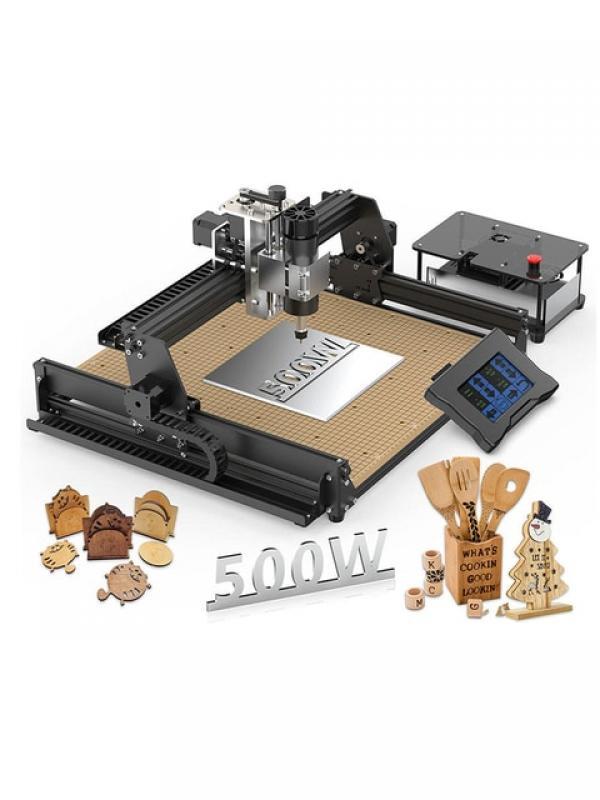

Parameter of CNC 4540 Pro-Max :
Product weight: 15.4kg(Fibreboard worktop)/18kg(Aluminum worktop)
Product Size: 650 × 532 × 320mm (25.59 × 20.94 × 12.60 inches)
Engraving Area: 430 × 390 × 90 mm (16.93 × 15.39 × 3.54 inches)
Working voltage: Input AC 110/220V±15%V ; Output DC 48V, 10.4A
Control Software: GRBL 1.1f Software (Candle)/ UGS Software/ Offline Controller
Compatible Systems：Windows XP / 7 / 8 / 10/11(GRBL)/ Mac OS(UGS)
Spindle power: 500W
Spindle speed: Load Speed 0-11000rpm/min; Max. Movement Speed: 5000mm/min
Laser Power: 20w/40w
Laser Interface: 3pin
Milling cutter: 3.175mm
Appication: plastic, wood, acrylic, pvc, pcb, leather, metallic paint coating, acrylic, stainless steel, aluminum alloy and so on
Note：
If you need to use laser to engrave the stainless steel or other soft metal, please 20w/40w fixed focus laser. The effect of cutting wood is also good.
the laser cannot directly engrave transparent and reflective materials, such as acrylic and stainless steel. It needs to be blacked out and engraved. Otherwise the laser is easy to wear out, resulting in weaker and weaker power.
We will provide a one-year warranty and we will solve all your after-sales problems.We will check all the goods before sending, we make sure you receive high quality products!
