Origin:Mainland China
Certification:CE
Power of Motor:550W, 400W
Spindle Speed:0-2250 RPM / 50-2250 RPM
Swing Over Bed:180 mm (7.09")
Centers Distance:350 mm (13.78"), 300 mm (11.8" )
Spindle Bore:21 mm (0.83")
Spindle Taper:MT3
Tailstock Taper:MT2
Product:Mini Metal Lathe Machine
Product Description
Metal Lathe Machine
Forceful Motor & Variable Speed & Nylon Gears
The precision mini bench top lathe features a 3-jaw chuck, a spindle taper, a tailstock taper, a tool rest and a quality motor, designed to perform various types of metal turning, simple to operate through high-frequency quenching process and precision grinding of high-quality cast iron bed.
Sturdy Iron Construction
Infinitely Variable Speed
Accurate 3-Jaw Chuck
Professional Compound Rest
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Key Features
Heavy & Sturdy Machine
Features with high quality iron material, this heavy-duty metal lathe is designed for durability and longevity.
Infinitely Variable Speeds
You can operate this bench top lathe manually. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set materials steadily. The spindle is supported by precision tapered roller bearings.
Four-way Tool Post
T-slotted compound slide with 4-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Professional Cross Slide
Our lathe is designed with abrasive resistance, moving blades optionally with feed rod. The slide ways with a distance between center is 12" / 14", large workspace for more facilitate.
Adjustable MT2 Tailstock
The tailstock is compatible with MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation. All accessories are well-packed.

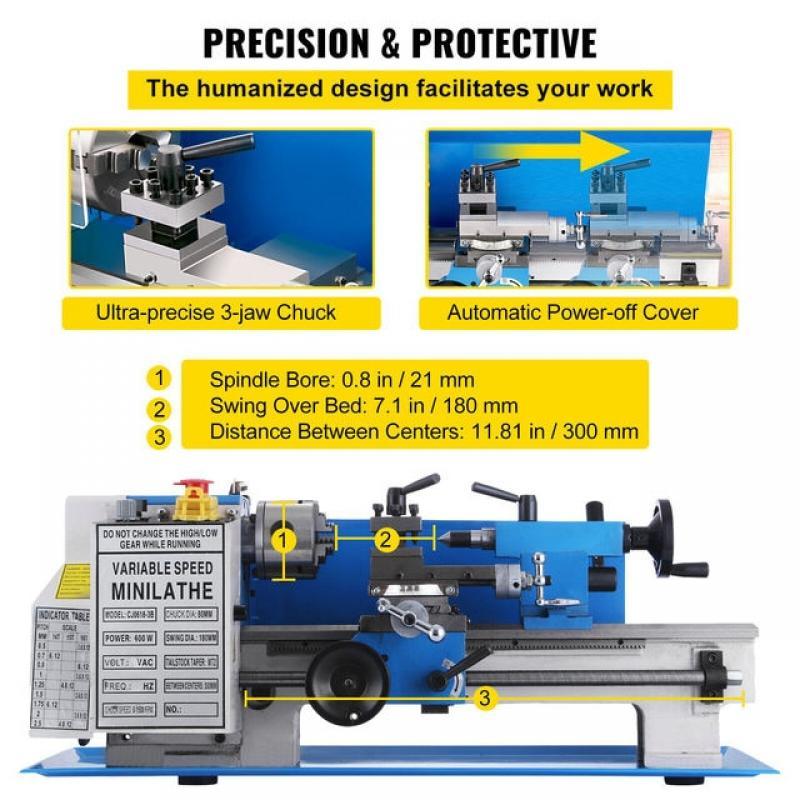

7'' x 12'' Metal Lathe Machine
Volt: 220V 50Hz for EU, AU, RU; 110V60Hz for US, CA, MX
Motor Power: 400W
Motor Type: Brushed
Phase: Single Phase
Variable Speed Gear: Plastic Nylon
Certification: CE
Chuck Diameter: 80 mm
Swing Over Bed: 7" / 180 mm
Distance Between Centers: 11.8" / 300 mm
Spindle Accuracy: 0.0004" / 0.01 mm
Spindle Speed: 50 - 2250 RPM
Spindle Bore: 0.83" / 21 mm
Tail Stock Taper: MT2
Spindle Taper: MT3
Top Slide Travel: 1.38" / 35 mm
Cross Slide Travel: 2.56" / 65 mm
Net Weight: 102.5 lbs / 46.5 kg
Item Dimensions (L x W x H): 27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm
Package Content
1 x Mini Lathe
1 x Chuck Wrench
2 x Wrenches
3 x Chuck Jaws
9 x Nylon Gears
1 x Oil Can
5 x Hex Wrenches
1 x Dead Center
1 x Chuck Claw
1 x Protecting Mask
4 x Shockproof Foot Cushions
1 x Toolkit
1 x Instruction Manual
7" x 14" Metal Lathe Machine
Power of Motor: 550W DC Single Phase
Spindle Speed: 0 - 2250 RPM
Swing Over Bed: 7.09" / 180 mm
Swing Over Cross Slide: 4.3" / 110 mm
Chuck Diameter: 3.94" / 100 mm
Centers Distance: 13.78" / 350 mm
Spindle Bore: 0.83" / 21 mm
Spindle Taper: MT3
Tailstock Taper: MT2
Cross Slide Travel: 2.53" / 65 mm
Top Slide Travel: 1.36" / 35 mm
Spindle Accuracy: 0.0004" / 0.01 mm
Inch Thread: 12 - 52 T.P.I
Metric Thread: 0.5 - 2.5 mm
Net Weight: 102.7 lbs / 46.6 kg
Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm
Package Content
1 x Mini Metal Lathe
3 x Chuck Jaws
1 x Lathe Center
1 x Chuck Wrench
2 x Wrench
1 x Oil Can
5 x Hex Wrenches
9 x Plastic Nylon Gears
2 x Handle
4 x Rubber Feet
4 x Screws
1 x Tool Box
Features & Details
【Sturdy Aluminum Construction】: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional. The full-length splash guard provides maximum protection.
【Infinitely Variable Speeds】: Spindle speed from 0-2250 RPM / 50-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
【Accurate 3-Jaw Chuck】: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.0004" / 0.01 mm.
【Professional Compound Rest】: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
【Wide Application】: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
