Model Number:KA600
Certification:CE,RoHS
Origin:Mainland China
Product name:SINO KA600 Linear Encoder
Input voltage:5VDC
Output signal:RS422 / EIA-422-A
Resolution:1um(0.001mm)
Accuracy:+/- 3,5,10 (20 degree,680 F 1000mm
Max of Measuring speed:60m/min
Reference Mark:one unit per 50mm
Cross Section Dimension:30mm X 43mm
Signal cable length:3 meter
Rubber:Double rubber protection
Application:Milling lathe boring grinder machine etc
Important notes:
We have the rights to change any company for ship the goods, because the long size of the package,it has limited size to ship it! We choose express company according to the actual situation and scale length! And as those linear scale oversize,it normally need to wait 1-2 weeks for the shipping company arrange on a plane.Please donot push us, we can not do anything for it. If you can't accept such a rule, please don't order! When the goods arrive at the buyer's local customs, the buyer must cooperate with customs clearance and pay customs duties! So please double check your tel number if correct or not when ordering. thank you.
If need urgently or any questions, please contact us before order.

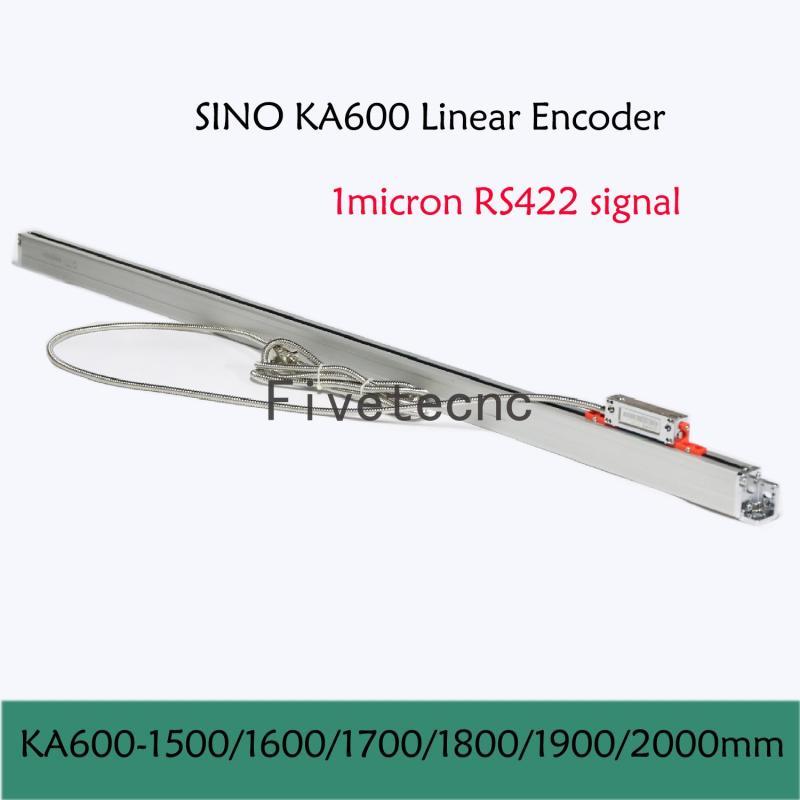

SINO KA-600 1500 1600 1700 1800 1900 2000mm 1micron RS422 DRO Linear Glass Scale KA600 0.001mm Optical Encoder for Milling Lathe
KA-600 is a stronger model(RS422 electric lever) for long requirement between 1000mm and 3000mm. For the KA series of linear encoder from our company, every ruler has passed through the strict quality measure technology dynamic laser control is used to ensure that the precision of every ruler has met the required standard before being delivered from the factory.
KA-600 linear encoder available in 1000mm-3000mm, cross section size is 30x43mm.
Package includes
-1 piece Sino KA-600 scale, scale protection cover, screw bag
Scale futures
Parameter
Product name: KA-600 Linear scale
Available Measrus Length: 1500mm, 1600mm, 1700mm, 1800mm, 1900mm, 2000mm
Cross Section: 30mm X 43mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 1um(0.001mm)
Output signal: RS422 / EIA-422-A
Cable standard: 3 meters(longer option)
Bar Pitch: 0.004mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
