Electronic:No Material Type:Plastic+PCB Item Weight:0.12kg Item Height:3.5inch Item Width:4.65inch Item Length:2.6inch External Testing Certification:ce Voltage:12.0 or 24.0 V Power:12.0 or 24.0 V power Model Name:Autel PowerScan PS100 Software Version:2021 Newest Hardware Version:Autel PowerScan Item Type:Electrical Testers & Test Leads Origin:Mainland China Certification:CE Product Type:Autel PowerScan PS100 PS100 Display:TFT color display (160 x 128 dpi) Volt tester:6- to 30-volt vehicle electrical systems Resistance Tester:0Ω-200Ω Function 1:Short Open Finder Function 2:Digital Display, Relay Component Testing, Voltmeter Function 3:Built-in Flashlight enables you to work in the dark External Power:12.0 or 24.0 V power provided via vehicle battery LengthWidthHeight:126mm(4.96")46.5mm(1.83")35mm(1.38") NW:0.105kg (0.23lb) GW:0.726 kg(1.6lb)
Read Me:
1. We are Authorized Distributor of Autel Brand, 100% Brand New Autel Original Genuine with software update and warranty. If not, Double compensation will be provided!!!
2. 1 Year Warranty and 365 days customer service.
3. Oversea Warehouse Shipping:
1/ From CN: All countries (DHL/Fedex: 7-15 days shipment.)
2/ From EU: European countries, we have paid the tax. ( 3-7 Days shipment)
3/ From US: USA, we have paid the tax. ( 5-10 Days shipment)
4/ From AU: Autralia, we have paid the tax. ( 5-10 Days shipment)
5/ From Russia: Russia, we have paid the tax. ( 5-10 Days shipment)
About PS100
Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle's battery, you can:
1.Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
2.Test for continuity with its built-in auxiliary ground lead.
3.By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
4.Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded.
5.Follow and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.
Overviews:
- Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
- Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
- With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
- Simultaneously uses the hot lead and the ground lead to activate components right in your hand
- Instantly identifies positive, negative and open circuits
Autel Powerscan PS100 Features:
Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
Instantly checks continuity of switches, relays and diodes
Circuit breaker protected
Built-in Flashlight enables you to work in the dark
Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
20ft (extendable) cable provides excellent accessibility to test along the vehicle
Extremely easy to use and highly reliable
Specifications:
Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60°C (32 to 140°F)
External Power: 12.0 or 24.0 V power provided via vehicle battery
LengthWidthHeight: 126mm(4.96")46.5mm(1.83")35mm(1.38")
NW: 0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

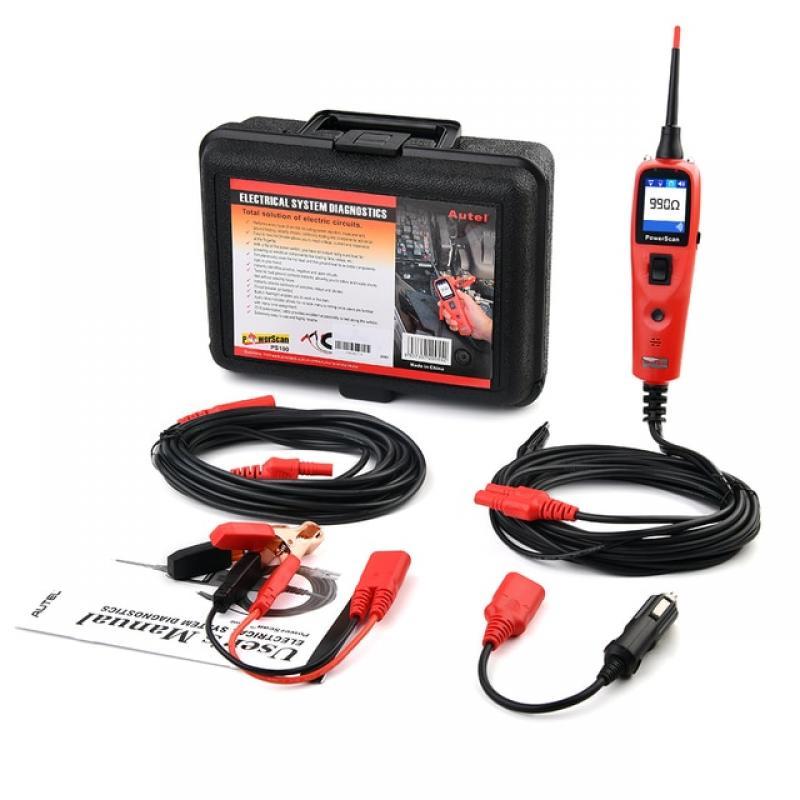

Package list:
1×PowerScan PS100
1 × Rugged blow molded case
1 × 20ft. extension cable
1 ×Probe tip
1 × Battery hookup clips
1 x Cigarette lighter adapter
1× User's Manual
