Surface Processing Mode:Gloss
is_customized:Yes
Model Number:CRF09
Use:Road Bicycles
Weight:1000G
Foldable:No
Material:Carbon
Origin:Mainland China
COLOR:CONTACT WITH US
frame size:50/52/54/56/58
stem size:90/100/110/120/130
handlebar size:380/400/420/440
BB:T47
NOTICE: The Discount Price ONLY for bike frame painting without Logo, if want bike frame with logo, ADD 60USD
Type: Carbon Road Bike Frameset CRF09
Material: Toray T1000 Full Carbon Fibre
Weave: UD Black
Finish: Glossy or Matte
Model Number:CRF09
Bottom Bracket:T47
Available Size :50/52/54/56/58
Maximum Load:140KG
Cable : All Routing Internal
Seatpost : 31.8*160mm
Brake: Disc Brake
Max Tire Size: 700*28C
Spacing: Front 100*12mm, Rear 142*12mm
Frame Weight: 1050g about ( size 54cm painted)
Fork Weight:About 360g
Seatpost weight(include clamp): about 135g
Package Content: Bike frame+Bike seatpost+Bike fork+bike headset+bike clamp+alxe rods+
Bike Handlebar Integrated
Warranty:
3
years
Suitable Derailleur: Di2 And Mechanical Both
Test Standard: EN Standard
EPS Molding: The State of the Art
Expanded Polystyrene (EPS) molding is the current state of the art when it comes to molding carbon-fiber composite. In EPS molding, a polystyrene inner form is made to the exact shape of the frame and the prepreg layup is done over this. The polystyrene used in EPS molding is very much like the liners of cycling helmets. Under heat it forcibly tries to expand to 40 times its size, completely and perfectly conforming the layers of prepreg to the exact shapes and contours of the outer clamshell mold. After curing, the spent forms are exhausted from the frame by means of high air pressure.
The result is a product with tighter compaction using less material, which means a stronger and lighter frame. It also means a frame with consistent thickness and without any of the imperfections and inconsistencies that bladder molding can leave. These irregularities can lead to delamination and/or premature stress fractures over time. Every fold and every wrinkle are potential points of failure. With EPS molding, the interior of the frame is as smooth and wrinkle-free as the exterior.
Notice:
1.the package include: frame+ seatpost+ fork+
handlebar+stem+
headset+clamp+alxe rods
2.the frame can provide rim brake and disc brake,when you place an order,please tell me you want
rim brake or disc brake?
3. the gift:bottom bracket T47 (T47-24mm or T47-DUB or T47-30mm),please tell me which you need
SIZE CHART

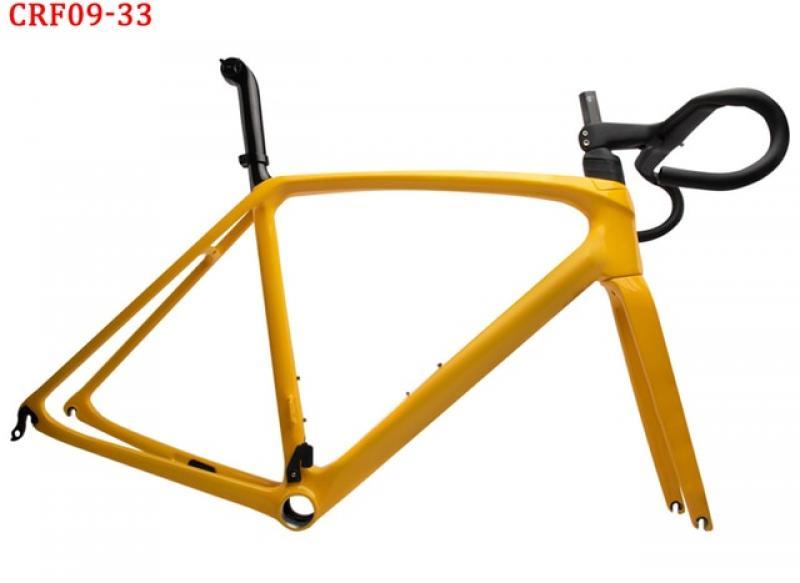

Partial Color Display
