WIFI:No
DSP:-
DAC:-
Body Material:Plastic
Bluetooth:Yes
Supports EBook Reading:No
Operation Mode:Touch Tone
Storage Type:Flash Memory
Have Speakers or not:Yes
Supports FM:Yes
Battery Specification:External Power
Signal Noise Ratio:≥89dB
Supports Recording Function:Yes
Display Size:None
Package:No
Function:Voice Recorder,FM Radio,bluetooth,Build in Speaker
Model Number:MP3 WMA Decoder Board
Style:Car MP3
Battery Life:> 20 hours
Screen:Yes
Balanced Out:No
External Memory:Yes
Audio Format Support:MP3, WAV,FLAC,ape,mp3,WAV,WMA
Origin:Mainland China
Certification:CE
Support:Call Recording

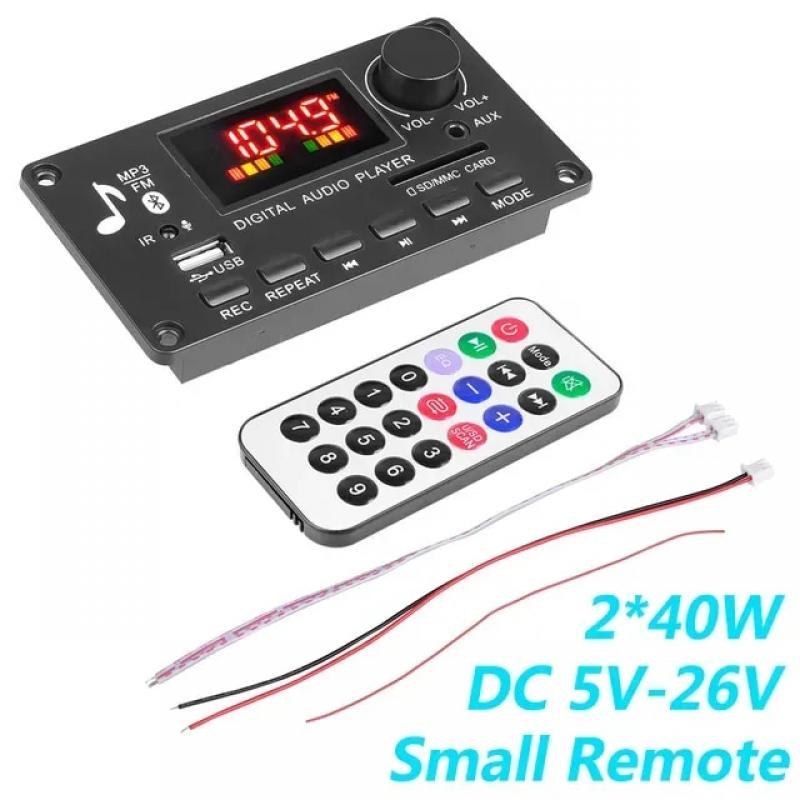

kebidu Newest Call Recording 80W Amplifier MP3 Player Decoder Board DC 5V-26V Bluetooth5.0 Car FM Radio Module Support TF USB AUX 3.5 WAV Support Dropship/Wholesale
Type:Big remote control/Small remote control
Model: JQ-D009BT (Power amplifier 2*40W)
Main control IC: Zhongke Nanxun AB5362B
Bluetooth IC: Zhongke Nanxun AB5362B Bluetooth version 5.0
Power amplifier ICCS8673E, power: 2*40W (80W requires voltage value: DC25V)
Bluetooth call function
Recording function
Music format: MP3 / WMA / WAV / FLAC / APE lossless format music
Radio FM frequency: 87.5-107.5 MHZ
Folder switching function
Support function introduction: support MP3 / USB / TF/ LINE IN / FM / BLUETOOTH/remote control connection/DC 5V-26V
About the structure: Panel size: length 112 * width 62 MM, the panel is surrounded by screw holes, the depth of the board is 22MM
1. Description of recording function
1. Long press the MODE button to start recording, long press the MODE button again to cancel the recording function and play the recording file;
2. When recording, you need to connect a storage device, such as U disk or TF card;
Under storage devices, such as U disk or TF card, long press the PLAY/PAUSE button (play/pause) to enter the recording folder and play the recording file.
Note:The minimum current is 2A, the maximum is not required.
