Data Transmission:Other
Voltage:3.7 В
Package:Yes
Use:Standard Battery
Model Number:Lii-PD4/S1/PL4/402/202/500
Display screen:Yes
Intelligent Charge:Yes
Quick charge:Yes
Type:Electric
Origin:Mainland China
Certification:CE,FCC,RoHS
Liitokala Lii-PD4 Chargerx1
AC Cable x1
Manual x1
Cautions:
1.
This charger can charge all cylindricalrechargeable batteries 3.7V Li-Ion, 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4
2.
Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
3.
If DC input, only 12V 1Ais recommended
4.
Mind heating while charging
5.
Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
6.
For indoor use only
7.
The displaying data only for reference, please refer to professional instrument for more accurate data
Specifications and functions:
1.
Multi-power input: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system.
2.
Charge current intelligent auto-set of total three levels: 500mA /1000mA/2000mA),2000mA is fixed only for slot#4.
3.
Multi-functional LCDcharging display: for charging progress25% - 50% - 75% -100% , battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V (IMR), charging capacity, voltage and current: 0.5A/1A/2A.
4.
Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)
5.
Refresh for OV battery. It will not charge any battery of1.65 -2.20V (refresh current can be detected only)
6.
Multi-safety protection function of over-charge and over-discharge, short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.
7.
Chargingat constant voltage and current
Button and LCD :
1.
Button of Mode(Channel button)
:
there are 4 independent buttons separately for each channel. While power supply is connected and battery inserted,
1) Short click the channel button in 5S to change the battery type. It will start to charge 5 seconds after setting the battery type (3.2V or 3.80V),
1.2V Ni-MH and 3.7V li-ion can be detected automatically, so it needs setting only 3.2V and 3.8V batteries;
Note: Battery type can be only selective before charging starts.
2.
LCD: While power supply connected, the LCDwill light up for 3S:
1) If no battery is inserted, the LCD will display "null" and will be off in 30S
2) When battery is inserted and detected, the LCD will show channel number while the battery type image " Li-Ion 3.7V"flashing indicating to set the battery type: this moment if short click the channel button, it can set battery type; if no operation in 5 seconds, it beginsby automatic detection(Li-Ion 3.7V or NIMH) then charging percentage image will flash meaning the start of charging. At the same time the LCD displays also charge voltage, capacity, time and current. When charge completes, it will display"100%"mean while it shows "End" on the LCD right down corner.
LCD displaygraphic reference
:
Cautions:
1.
This charger can charge all cylindricalrechargeable batteries 3.7V Li-Ion, 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4
2.
Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
3.
If DC input, only 12V 1Ais recommended
4.
Mind heating while charging
5.
Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
6.
For indoor use only
7.
The displaying data only for reference, please refer to professional instrument for more accurate data
Specifications and functions:
1.
Multi-power input: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system.
2.
Charge current intelligent auto-set of total three levels: 500mA /1000mA/2000mA),2000mA is fixed only for slot#4.
3.
Multi-functional LCDcharging display: for charging progress25% - 50% - 75% -100% , battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V (IMR), charging capacity, voltage and current: 0.5A/1A/2A.
4.
Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)
5.
Refresh for OV battery. It will not charge any battery of1.65 -2.20V (refresh current can be detected only)
6.
Multi-safety protection function of over-charge and over-discharge, short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.
7.
Chargingat constant voltage and current
Button and LCD :
1.
Button of Mode(Channel button)
:
there are 4 independent buttons separately for each channel. While power supply is connected and battery inserted,
1) Short click the channel button in 5S to change the battery type. It will start to charge 5 seconds after setting the battery type (3.2V or 3.80V),
1.2V Ni-MH and 3.7V li-ion can be detected automatically, so it needs setting only 3.2V and 3.8V batteries;
Note: Battery type can be only selective before charging starts.
2.
LCD: While power supply connected, the LCDwill light up for 3S:
1) If no battery is inserted, the LCD will display "null" and will be off in 30S
2) When battery is inserted and detected, the LCD will show channel number while the battery type image " Li-Ion 3.7V"flashing indicating to set the battery type: this moment if short click the channel button, it can set battery type; if no operation in 5 seconds, it beginsby automatic detection(Li-Ion 3.7V or NIMH) then charging percentage image will flash meaning the start of charging. At the same time the LCD displays also charge voltage, capacity, time and current. When charge completes, it will display"100%"mean while it shows "End" on the LCD right down corner.
LCD displaygraphic reference
:
Electrical Parameters:
1. Input : AC cable 110-240V 50/60Hz (included)/
DC 12V 1A(selective)
2. Output voltage: DC 4.2V for Li-Ion 3.7V
DC 4.35V for Li-Ion 3.8V( IMR)
DC 3.65V for LiFePO4
DC 1.48V for NiMH/NI-Cd
3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),
1000mA*2, 500mA*3
500mA*4
NiMH/NiCd: 1000mA*2, 500mA*3
500mA*4
4. Constant voltage, cut-off current: less than 100mA
5. Standby current: less than 15mA
Compatible battery types and sizes
Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA,SC, C
Size and weight:
133mm x 100mm x 35mm (L x W x H)
Weight:
approx175g (not including AC cable)
Electrical Parameters:
1. Input : AC cable 110-240V 50/60Hz (included)/
DC 12V 1A(selective)
2. Output voltage: DC 4.2V for Li-Ion 3.7V
DC 4.35V for Li-Ion 3.8V( IMR)
DC 3.65V for LiFePO4
DC 1.48V for NiMH/NI-Cd
3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),
1000mA*2, 500mA*3
500mA*4
NiMH/NiCd: 1000mA*2, 500mA*3
500mA*4
4. Constant voltage, cut-off current: less than 100mA
5. Standby current: less than 15mA
Compatible battery types and sizes
Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA,SC, C
Size and weight:
133mm x 100mm x 35mm (L x W x H)
Weight:
approx175g (not including AC cable)
Liitokala Lii-PL4
Chargerx1
AC Cable x1
Manual x1
Instruction manual Lii-PL4
Precautions
1. This charger can handle all cylindrical batteries 3.7V Li-ion, 3.8V IMR, 1.2V Ni-MH / Cd, 3.2VLiFePO4
2. Read this manual before use and pay special attention to the recommended charging current, needs to be above the recommended current limit
3. If DC input, only 12V 1A is recommended
4. Spirit heating during loading
5. Remove the charger from power source after charging finished, and remove the battery from the charger at the same time
6. for the interior only
7. The display data for reference only, please refer to professional instrument for more accurate data
specification and function
1. Multi-power input: AC cable 110-240V 50 / 60Hz (included) / 12V 1A adapter (selective), four independent and micro computer management system.
2. Three charging mode (500mAh / 1000mAh / 2000mAh, 2000mAh current mode is fixed only to the fourth slot.
3. The LED charging indicators: both for charging progress: 25% -50% -75% -100% and battery types: Ni-MH 1.2V, Li-Fe 3.2V, Li-ion 3.7V , Li-ion 3.80 V (IMR)
4. Automatically identify Li-ion and Ni-MH batteries and manually set the charging mode for LiFePO4 and 3.80V lithium ion batteries (IMR)
5. Upgrade for OV battery. there will be no battery of1.65-1.85V (refresh current can only be detected)
6. Protection for overcharge and over-discharge and short-circuit. identify broken battery and polar reverse polarity protection.
7. Charging under constant voltage and current
Button, LED and function
1. Keys: While power supply is connected, 1) Short press (less than 2S) to change the mode, the battery type. It will start to charge 5 seconds after the setting of the battery type (3.2V or 3, 80V), 1.2V Ni-Mh and 3.7V li-ion can be detected automatically, so it only needs adjustment of 3.2V and 3.8V batteries; 2) Change the charging current anytime during the charging process by pressing long (more than 2s) the mode button
2. LED: While power is plugged in, all LEDs light immediately 1) If no battery is inserted, the 500mAh LED (one of the three power display LEDs) will stop and others will go away. 2) When battery is inserted and detected, 4 LED charge indicator for the channel will open on taking which 3.7V battery type LED keeps flashing indicating to the battery type, if no operation in 5 seconds, it will start by automatic detection (Li -Ion 3.7V or NIMH) then four LED displays will show the charge status. 3) During the charging process, short-press the mode button to set the battery type within 5 seconds; 4) When no power is connected, insert a battery, it can quickly shows the remaining battery charger volume of the battery.
3. LED display graphic reference
technical specification
1. input: AC cable 110-240V 50 / 60Hz (included) / DC 12V 1A & # 65288; selective & # 65289;
2. Output voltage: 4.2V DC for 3.7V Li-Ion
DC 4.35 V for Li-Ion 3.8 V (IMR)
DC 3.65 V for LeFePO4
DC 1.48 V for NiMH / NI-Cd
3. Output current: Li-ion / IMR / LiFePO4 2000mA * 1 (only for slot # 4),
1000mA * 2, 500mA * 3 500mA * 4
NiMH / NiCd: 1000mA * 2, 500mA * 3 500mA * 4
4. Constant voltage, cut-off current: less than 100mA
5. Standby current: less than 15mA
Compatible battery types and sizes
li-ion / IMR / LiFePO4: 26650 & # 65292; 21700 & # 65292; 20700, 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
NiMH / Cd: AA, AAA & # 65292; SC, C
size:
133mm x 100mm x 35mm (L x W x H)
Lii-S1 List:
Liitokala Lii-S1 Chargerx1
USB cable x1
Manual x1
Note: Does not include the battery
LiitoKala Lii-S1
Technology once again innovation, Auto-polarity detection. Do not need to distinguish the battery polarity. As long as the battery is rechargeable battery that can be charged. Do not worry about battery polarity reverse.Good Charger.
In addition to Auto-polarity detection there is a strong visible digi-dispaly. Visually beautiful. Function continues the Lii-100, very good.
Specifications
Input: Micro USB DC 5V / 1A (min.)
Output voltage: DC 4.2V 500mA / 1000mA for Li-Ion
DC 4.35V 500mA / 1000mA for IMR
DC 3.65V 500mA / 1000mA for LeFePO4
DC 1.48V 500mA / 1000mA for NiMH / NI-Cd
Constant voltage charging with cut-off current less then 100mA
Standby current: No more than 15mA
Compatible for Batteries:
Li-ion / IMR / LiFePO4: 26650, 21700,20700, 18650, 18490, 17700, 17500, 16340 (RCR123), 14500, 10440
Ni-MH / Cd: AA, AAA, A, SC, C size
Size (mm) / Weight (grams):
Length 112mm x Width 37mm x Height 32mm
45 grams (charger) + 17grams (USB cable) included in delivery
Features:
1, One-slot charging and management system, Micro USB DC 5V input port
2, Battery polarity auto-detection (Any Polarity)
3, 500mAh / 1000mAh charging current for selection
4, Built-in digital tube indicator shows the real-time charging status of voltage and current
5, Identify Li-ion and Ni-MH battery automatically
Select manually by short-press the mode button for IMR battery (3.85V Li-ion) and LiFePO4 battery (3.2V)
6, Activation function for 0V battery of PCM protection.
7, Can not charge battery with 0.0U 0.2V for NiMH / Cd and 1.6U 2.2V for Li-Ion
8, Over-charging and over-discharge protection
9, Identify broken / defective battery
10, Charging under constant voltage and current
Operation instruction:
There's a 'MODE' button for choosing the battery types and charging current
Long press the 'MODE' button for 3 seconds to change the charging current, you can change the charging current at any time
Short press the 'MODE' button to change the charging types of lithium batteries. If no setting, it will default as 1.2V Ni-MH or 3.7V li-ion battery automatically. You need to change the mode for 3.85V li-ion and 3.2V LiFePO4 battery
It begins to charge the battery 5 seconds after your settings
When the battery is inserted or defective battery is inserted, the charger will have no any response showing "null" ; When the battery is fully charged, it shows "Full"
It can display the battery voltage and charge current by short press the 'MODE' button at any time during charging
Shipping list:
Liitokala
lii-500 Charger 1PCS
Liitokala
2A
Adapter
1PCS
Liitokala
Car Charger 1PCS
Liitokala
lii-500 Manual
1PCS
(Adapter with ul flat plug and the gauge round plug, the guest to buy please leave a message to tell us you need the plug, if no message, we randomly shipment)
Shipping list:
Liitokala
lii-S2 Charger 1PCS
Liitokala
USB
cable
1PCS
Liitokala
lii-S2Manual
1PCS

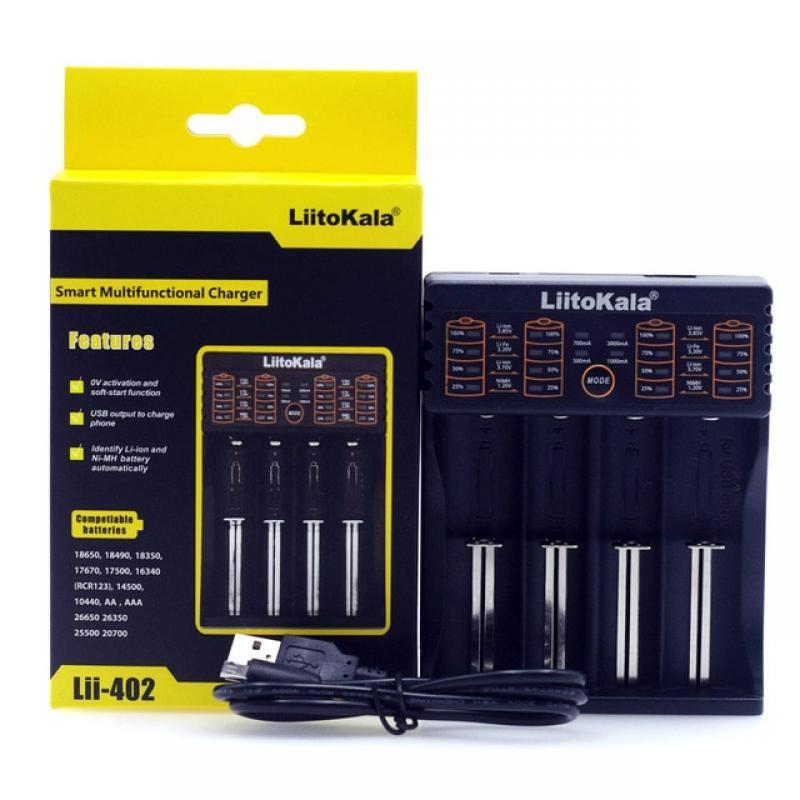

Liitokala Lii402 USB package: Lii402 charger + USB cable + manual(
Note: This package does not include a plug!
)
Liitokala Lii202 USB package: Lii202 charger + USB cable + manual
(
Note: This package does not include a plug!
)
Liitokala Lii100 USB set: Lii100 charger + USB cable + manual(
Note: This package does not include a plug!
)
