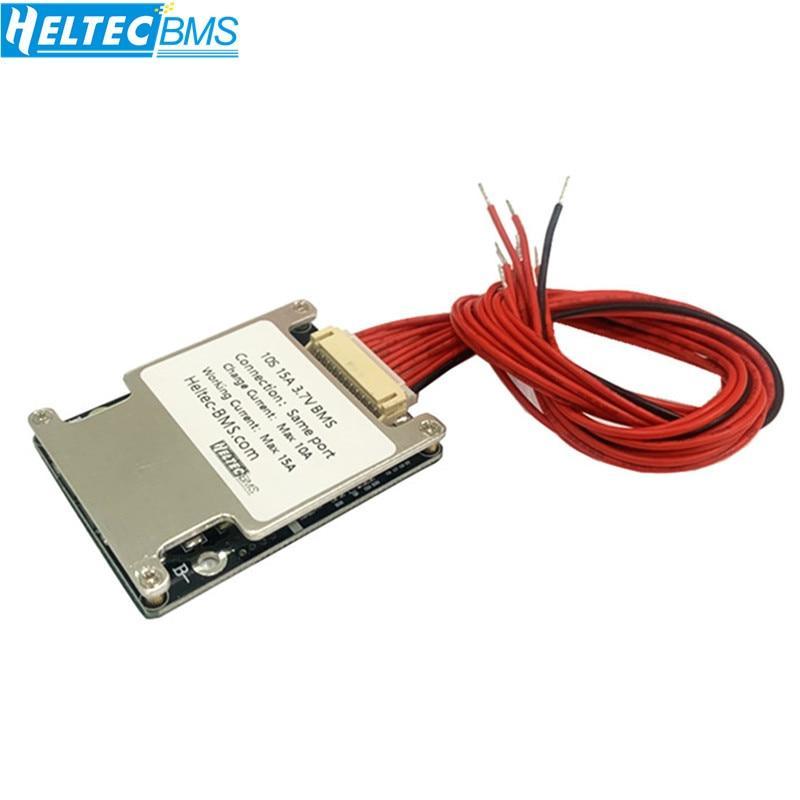

Model Number:BMS BOARD
Accessory Type:Battery Accessories
Origin:Mainland China
Certification:CE

10S 20A 3.7V Same Port
Size: 63×48×8MM
Overcharge protection : 4.28v
Over-discharge protection : 2.8v
Abnormal high voltage protection
Temperature protection optional
Maximum continuous current : 20A
Discharge over current protection : 100A
Load short circuit protection
Balance current : 83 mA
Charging recovery
Application：
Applicable to 36V Electric bicycle and electric tools within 500W
10S 30A 3.7V Same Port
Size: 63×48×8MM
Overcharge protection : 4.28v
Over-discharge protection : 2.8v
Abnormal high voltage protection
Temperature protection optional
Maximum continuous current : 30A
Discharge over current protection : 100A
Load short circuit protection
Balance current : 83 mA
Charging recovery
Application：
Applicable to 36V Electric bicycle and electric tools within 600W
10S 60A 3.7V Same Port
Size: 63×48×14MM
Overcharge protection : 4.28v
Over-discharge protection : 2.8v
Abnormal high voltage protection
Temperature protection optional
Maximum continuous current : 60A
Discharge over current protection : 200A
Load short circuit protection
Balance current : 83 mA
Charging recovery
Application：
Applicable to 36V Electric bicycle and electric tools within 1200W
13S 14S 30A 3.7V Same Port
13S 14S 30A 3.7V Same Port
Size: 63×48×8mm
Overcharge protection: 4.25v±0.25v
Charging recovery: 4.2V
Over-discharge protection: 2.8v±0.25v
Discharge recovery: 3.0v
Maximum continuous current: 30A
Peak Current: 66A
Balance current: 80 mA
Balanced starting voltage: 4.15v±0.25v
Charging recovery
Self-consumption: ≤35uA
Application:
Applicable to 48V Electric bicycle and electric tools within 550W
13S 40A 3.7V Same Port
Size: 72×55×8mm
Overcharge protection : 4.28v
Over-discharge protection : 2.7v
Abnormal high voltage protection
Temperature protection optional
Maximum continuous current : 40A
Discharge over current protection : 125A
Load short circuit protection
Balance current : 83 mA
Charging recovery
Application：
Applicable to 48V Electric bicycle and electric tools within 800W
13S 60A 3.7V Same Port
Size: 72×55×14mm
Overcharge protection : 4.28v
Over-discharge protection : 2.7v
Abnormal high voltage protection
Temperature protection optional
Maximum continuous current : 40A
Discharge over current protection : 250A
Load short circuit protection
Balance current : 83 mA
Charging recovery
Application：
Applicable to 48V Electric bicycle and electric tools within 1200W
10S 12S 13S 14S 60A 3.7V Split Port
Size：78×60×17mm
Overcharge protection : 4.28v
Over-discharge protection : 2.9v
Abnormal high voltage protection
Temperature protection optional
Maximum continuous current : 60A
Discharge over current protection : 225A
Load short circuit protection
Balance current : 56 mA
Charging recovery
Application：
Applicable to 48V Electric bicycle and electric tools within 1200W
10S 12S 13S 14S 4 0A 3.7V Split Port
Size：78×60×17mm
Overcharge protection : 4.28v
Over-discharge protection : 2.9v
Abnormal high voltage protection
Temperature protection optional
Maximum continuous current : 40A
Discharge over current protection : 225A
Load short circuit protection
Balance current : 56 mA
Charging recovery
Application：
Applicable to 48V Electric bicycle and electric tools within 1200W
12S 16S 60A 120A 3.7V Same Port
Size: 115×66×10/115×66×17/115×66×38/115×66×57mm
Overcharge protection : 4.28v
Over-discharge protection : 2.7v
Abnormal high voltage protection
Temperature protection optional
Maximum continuous current : (1:60A, 2:120A, 3:240A, 4:360A)
Discharge over current protection : 250A/500A/1000A/1500A
Load short circuit protection
Balance current : : 83 mA
Charging recovery
Application：
Applicable to all kinds of common customized high and medium power lithium batteries
