5G Wi-Fi Transmission Rate:433Mbps
Wired Transfer Rate:500 Mbps
Wi-Fi Transmission Standard:802.11ac
2.4G Wi-Fi Transmission Rate:150 Mbps
Wi-Fi Supported Frequency:2.4G & 5G
Supports WPS:Yes
Supports WDS:Yes
Number of USB Interfaces:None
WAN Ports:1 x10/100Mbps
LAN Ports:1
Function:Firewall,VPN
Application:Outdoor
Package:Yes
Standards And Protocols:Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac,Wi-Fi 802.11g
Max. LAN Data Rate:600Mbps
With Modem Function:No
Type:Wireless
Origin:Mainland China
Certification:CE
color:white
Chipset:MT7688A+7610E
Flash:64Mb
DDR2:512Mb
Power Supply:DC24V / 0.5A Power over Ethernet ( Passive PoE)
Power Plug:UK/EU/US/AU
Power Consumption:7W MAX
Rated Voltage/ requency /current:AC 100-240V 50/60Hz
antennas:two omni-directional 7dBi dual-polarized antennas
product:Outdoor Wireless Wifi Repeater/ Router/extender

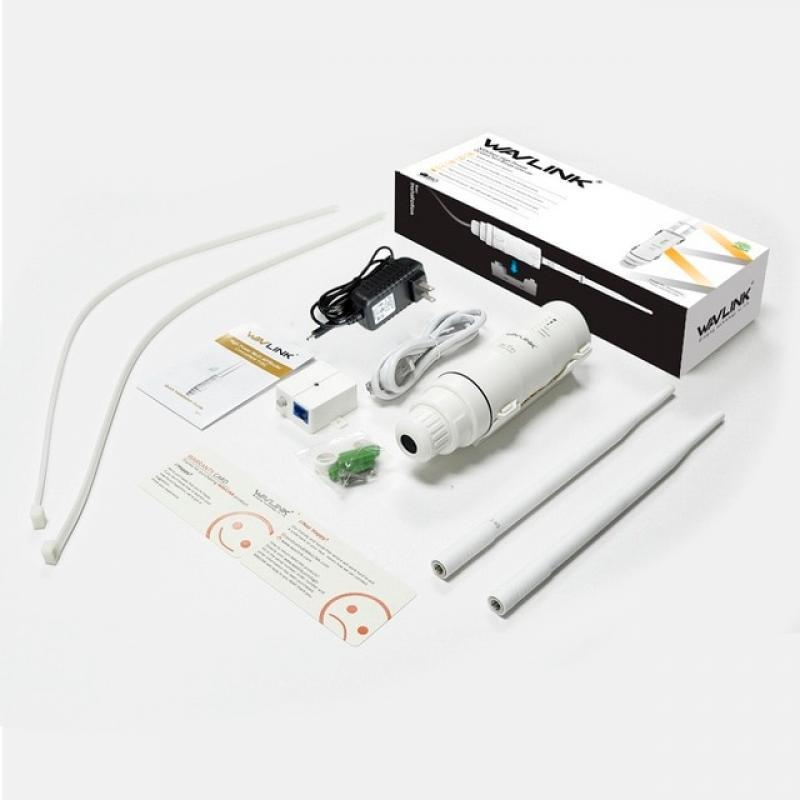

Wavlink AC600 High Power Outdoor Repeater
• High power and dual polarization delivers long-range coverage
• Passive PoE(power over Ethernet) supports for flexible deployment and allows the device to be reset remotely.
• Weatherproof IP65-rated housing resists harsh climates.
• Dual band speed up to 2.4GHz 150Mbps and 5GHz 433Mbps.
• Supports AP, Router, Repeater,WISP as operation modes. In the mode of AP, it provides Access Point, Client, Client Repeater modes for wireless solutions.
How does it work
1.Slide the straps through the slots on the back of the AP/Router and tighten the straps around the hole.
2.Connect one end of an LAN cable to the PoE port of the provided Power injector and the other end of the LAN cable to the LAN port of the AP/Router.
3.Use another LAN cable to connect the LAN port of the power supply.
4.Plug the power adapter into a wall socket.
Note
--Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
--The outdoor antennas should be installed at a height of 2 meters above the roof, or in a high open place for better reception.
--The signal is according to your environment and channel ,different environment will have different distance .
--Passive PoE power supply though Ethernet cable does not work over 60 meters.
---The PoE part of the router is not waterproof.
