5G Wi-Fi Transmission Rate:867Mbps
Wired Transfer Rate:100Mbps
Wi-Fi Transmission Standard:802.11ac
2.4G Wi-Fi Transmission Rate:300 Mbps
Wi-Fi Supported Frequency:2.4G & 5G
WAN Ports:1 x10/100Mbps
LAN Ports:2
Function:Firewall,QoS,VPN
Application:Home
Package:Yes
Standards And Protocols:Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac
Max. LAN Data Rate:867Mbps
With Modem Function:No
Type:Wireless
Origin:Mainland China
Certification:CE,FCC,RoHS
【For Everyone】
Use CODE:
【
FUTFRE5963EA
】
to get $5 discount.
First come, first served!
Notes:
This router is unlcoked. But different operators have different frequency bands in different countries.And this link has two options, one is 1200Mbps 2.4Ghz&5Ghz, one is 300Mbps 2.4Ghz. Please choose the correct option when ordering.

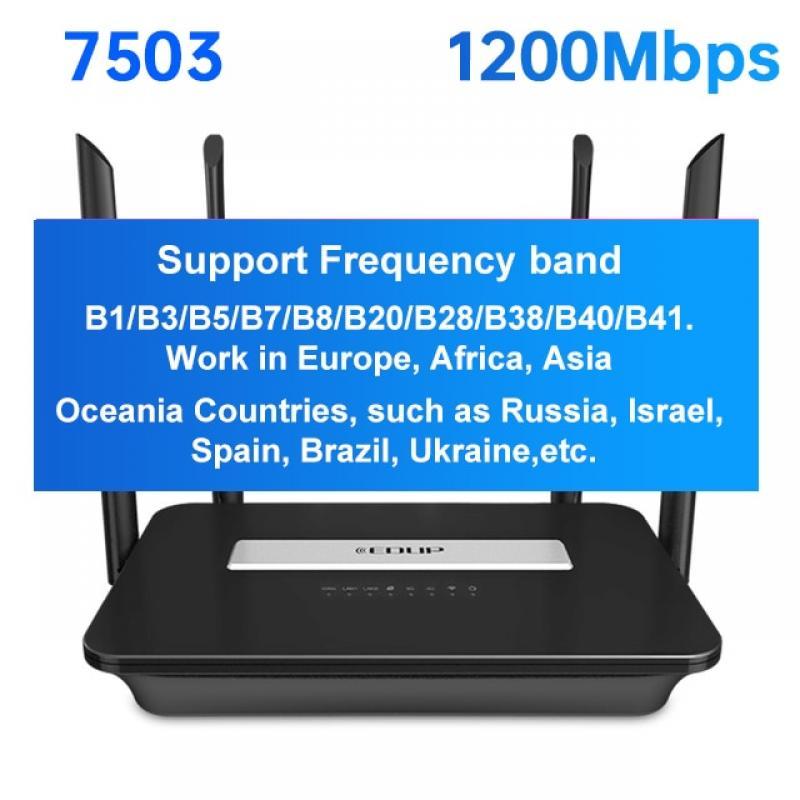

Support Frequency band:
LTE: B1 / B3 / B5 / B7 / B8 / B20 / B28 / B38 / B40 / B41.
WCDMA: B1 / B3 / B5
GSM/GPRS/EDGE: 850 / 900 / 1800MHz
(Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.)
Features:
1.1200Mbps 4G wifi router, provide faster network speed
2.Support 2.4Ghz (300Mbps) and 5Ghz (867Mbps), have better range and signal strength, provide better network speed, suitable for use in the office and at home.
3.Equipped with 4*5dBi external antenna and 2*5dBi internal antenna, the signal transmission is more stable. The rotatable high-gain antenna can increase the signal coverage.
4.Support SIM card insertion to use the network: easy to carry, suitable for home use, travel, etc.
5.Support multiple operation mode configurations:3G/4G,AP Client,Ethernet Converter,Gateway,Bridge.
6.Support IMEI change function: Meet individual needs, to better meet the network usage needs of mobile phones and other wireless terminals.
(If you have this requirement, please contact the seller to get the operation steps.*This is a hidden function tested by professional users. We do not recommend ordinary users to change the IMEI of the device to obtain cheaper Internet traffic, and we will not provide technical support for this.)
High Performance 4G LTE Router
Supports SIM card insertion or network cable access LAN Port to use the network, and supports up to 25 devices online at the same time.
2.4GHz up to 300Mbps, long distance transmit, strong ability to pass through walls.
5.8GHz up to 866Mbps, fast transmission speed, little interference, stable signal.
Equipped with 6 high-gain antennas to make signal reception and transmission more stable, increase signal coverage.
SIM card plug and play, convenient and fast
Support for SIM card slot, turn on portable wifi hotspot.
(
Note:Only supports Mini SIM cards, not Micro or Nano SIM cards.
)
Support changing IMEI and TTL
Support multiple operation mode configurations
3G/4G,AP Client,Ethernet Converter,Gateway,Bridge
Suitable for use in many occasions
Can be used in home, office, hotel, restaurant, rental room, coffee shop etc.
The difference between 9703 and 9522
Specifications:
Master control: MTK MT7628AN
Working frequency band: 2.4Ghz, 5.8Ghz
Wireless rate: 5.8G(867Mbps)+2.4G(300Mbps)
Wireless standard: IEEE 802.11a/b/g/n/ac
Memory: 8M ROM+128M RAM
Interface: 2*10/100M LAN, 1*10/100M WAN, 1*SIM Slot, 1*DC
Antenna: 2.4G 5dbi*2, 5.8G 5dbi*2 (built-in), 4G 5dBi*2
Button: 1*reset switch
Language: Chinese&English
Power supply: 12V/1A
Software Function：
Working mode: router, AP, wireless relay, 4G mode
Network interface: 3G/4G, WAN
DHCP: DHCP server, Relay, Client List
Virtual Servers: Port Forwarding, DMZ, UPnP
Firewall: IP/MAC/URL filtering
VPN: PPTP, L2TP
Support DDNS, QoS (based on IP/MAC), static routing, LOG, Wizard, network switching, modify IMEI, data package settings
Package Include：
1* 4G Router
1* Power supply
1* User Manual
Shipping and Returns:
Shipping is available from China, Russia and Spain.
Warranty:
Products ordered from China come with a 75-day money-back guarantee.
