Material:Resin
Model Number:EC51-1000g TH50-1000g TH72-1000g FX60-500g
Form:Liquid
Origin:Mainland China
Product Name:Standard Rigid 3d Resin
Adapted Machine:DLP LCD 3D Printer
Adapted:Tough 3d Resin
Product:Flexible 3d Resin

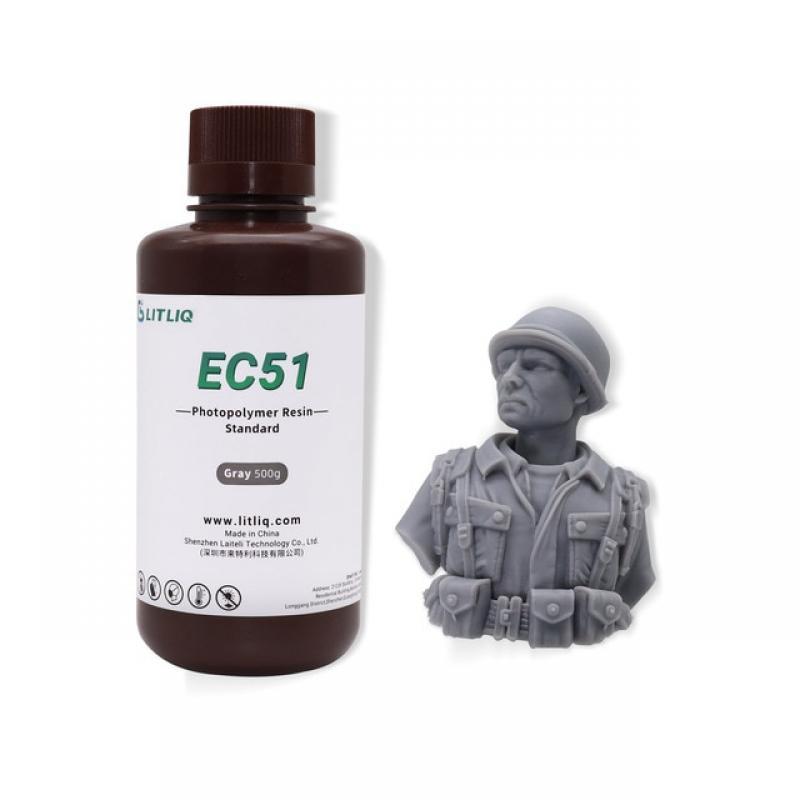

EC51 is a standard 3d printer resin that can achieve fast printing, and it supports up to 0.2mm layer thickness 3d printing. EC51 resin 3d printed parts are easy to release from the FEP film, when adding supports, the fault tolerance rate is high and the supports are easy to remove, so the 3d printing success rate is high. It is a resin that is very friendly to novices.
▌ Attention
If white matter appears on the surface of the print, please increase the light-off delay time.
Make sure the prints are evenly exposed to UV light. Both the front and back of the print should be cured.
▌ Features
【Fast printing】EC51 resin has fast curing speed and supports 0.2mm layer thickness printing. If you don’t mind the surface quality of the prints, the printing time of the same model with 0.2mm layer thickness is 1/4~1/3 of the printing time of other resins with 0.05mm layer thickness.
Good mechanical strength
Compared with other standard resins, the tensile strength, flexural strength, elongation at break and notched impact strength of EC51 resin are all good and balanced.
Friendly for novices
EC51 resin 3d printed parts are easy to release from the FEP film, when adding supports, the fault tolerance rate is high and the supports are easy to remove, so the 3d printing success rate is high. In addition, EC51 prints are also easy to clean.
Components do not settle
The components in the EC51 resin liquid will not settle for a long time, and the printing results are stable and consistent.
Broad adaptability
EC51 resin is suitable for all mainstream LCD/MSLA/DLP 3d printers on the market, including RGB or Mono screen printers.
▌ Cleaning and Post-curing
Cleaning tools: Soft brush or Ultrasonic cleaner or 2 in 1Wash Cure Machine
Cleaning time: 30s
Cleaning solvent: 95% Ethanol or IPA
Post-curing light source: 385-405nm UV(40W)
Post-curing time: 3min
LITLIQ TH50 resin is a tough resin with high elongation at break. It is hard but not brittle, tough but not soft. Its transparent blue appearance makes it easy to observe the internal conditions of the printed part. It is an ideal choice for printing industrial parts and figures.
▌ Attention
Recommended layer height: 0.075mm
Do not put prints in water or humid environment
Excessive post-curing or low temperature will make prints brittle
Do not apply too much force to the prints just after post-curing, it will take several hours for the prints to reach the mechanical properties they should have
If you do not need to use the resin within 1 day, please pour it into a clean, light-shielded container and keep it tightly sealed. Do not mix the printed resin liquid with the unused resin to avoid contamination of the new resin
▌
Features
【High Toughness】The hardness and toughness of the printed parts are superior to those of ordinary resins or mixture of ordinary resin and flexible resin, with good notched impact strength and excellent elongation at break.
【Nylon-like】47% elongation at break and good impact strength, the strength is far superior to the mixed liquid printing parts of ordinary resin and flexible resin. The prints are tough but not soft, hard but not brittle, can be machined, and have a mechanical strength close to nylon 6.
【Fast Printing】Higher transmission depth, the recommended printing layer thickness is 0.075mm. The number of layers is reduced for fast printing.
【Suitable for beginners】The formula is optimized so that the bottom layer of the print sticks firmly to the platform. And the allowable exposure time range is large, and the fault tolerance rate is high. These factors improve the printing success rate.
【Internal Visibility】 The transparent blue color is easy to observe the internal structure of the part, and if there is any damage inside during use, you can tell at a glance.
【Wide range of application】 Suitable for most LCD and DLP resin 3D printers on the market.
TH72 is a resin with long-lasting toughness. Don't be too careful when you're playing with the TH72 print, as it won't get damaged easily, and it won't shrink and warp much over long periods of time. It's ideal for printing figurines.
▌ Attention
TH72 requires users to be good at adding supports. For parts with higher height or larger cross-sectional area, it is recommended that the diameter of the supports body be no less than 1.2mm, and the supports should be as many and dense as possible.
For some types of 3d printers, the surface of the printed TH72 resin parts has a silky texture, and the prints will feel slightly sticky after cleaning.
▌
Features
The prints are not easily damaged
TH72 prints can withstand accidental accidental drops, and you can significantly bend or even fold prints with a wall thickness of less than 3mm. It is ideal for printing durable figures.
Long-lasting toughness
TH72 prints will not slowly become brittle over time. After testing, 1 month of summer sun and rain and 8 hours of high temperature drying at 50-60 ℃ will not make it lose its toughness and strength, it has good weather resistance.
Hollowed out prints will not crack
The hollowed out model often crack slowly because the interior cannot be completely cleaned and cannot be post-cured. TH72 will not, allowing you to save more material.
As a toughening agent for other resins
The RESIONE team tested that TH72 was added to the rigid/standard resin. When the proportion of TH72 in the mixed resin is 40%, the toughness of the rigid/standard resin is significantly improved and the strength is sufficient.
Very low water absorption: Water Absorption(48hr) 0.6%, it performs quite well in 3d printer resins, which makes the printed parts not soften due to high air humidity and not crack due to long-term moisture absorption.
▌
Printing Settings
Layer Height:
0.05mm
Bottom exposure time:
Default parameters for standard resins of machine brands
Normal exposure time:
Default parameters for standard resins of machine brands*1.2
▌
Cleaning and Post-curing
Cleaning tools:
Manual cleaning or Ultrasonic cleaner or 2 in 1 Wash Cure Machine
Cleaning time:
3mins
Cleaning solvent:
95% Ethanol or IPA
Post-curing light source:
385-405nm UV(40W)
Post-curing time:
30~60mins
FX60 resin is a black flexible resin. It has good fluidity, and the prints can still maintain a certain degree of flexibility and resilience at low temperatures, and the mechanical properties at room temperature are similar to rubber or TPU.
▌ Attention
Flexible prints are easily deformed during printing, so they need thicker and denser supports
Do not apply too much force to the prints just after post-curing, it will take several hours for the prints to reach the mechanical properties they should have
▌
Features
【Similar to TPU or rubber】 FX60 has a hardness of 60A, the print feels softer than rubber but harder than silicone. It has high elongation at break and good resilience, and can be repeatedly stretched, compressed and bent. Its mechanical properties are similar to TPU and rubber.
【Good fluidity】 The low viscosity of the liquid makes the resin reflow faster, reducing the waiting time before each exposure, thereby increasing the printing speed. At the same time, liquids with good fluidity are less likely to accumulate in the gaps, which makes the details of the prints clearer and sharper, and the prints are easier to clean.
【Low temperature resistance】 FX60 prints will not become hard and brittle like other resins even in the cold winter, but still maintain a certain degree of flexibility and resilience.
【High printing success rate】 Soft properties and low colorant concentration allow prints to adhere firmly to the build plate. And FX60 has a high exposure time error tolerance rate, these factors improve the printing success rate.
▌
Cleaning and Post-curing
Cleaning tools: Soft brush or 2 in 1 Wash Cure Machine or Ultrasonic Cleaner
Cleaning time: 3mins
Cleaning solvent: 95% Ethanol or IPA
Post-curing light source: 385-405nm UV(40W)
Post-curing time: 4-6mins
