Application:For Commercial
After-sale Service:Shop's Three Guarantees
Weight:22kg
Voltage:100-240V
Consumable Type:Separate Toner
Max. Resolution:2880*1440dpi
Color Print Speed:2880dpi/7min
Black Print Speed:1440dpi/7min
Use:DTF printer for clothes
Print Speed:20ppm
Double-sided Printing:No
Supports Network Printing:Wired
Paper Feed Mode:Roll Feed
Max Paper Size:A3+
Type:DTF PRINTER
Interface Type:USB
Origin:Mainland China
Certification:CE,FCC
Print Head:1390/l1800/dx5
Voltage::110~240V
Warranty:3 Years
Name:A3 DTF printer
Preheat:support
Roll print:support
key word:dtf transfer
Temperature and humidity display:yes
Pre-heating:yes
feature 1:dtf printer machine
feature 2:dtf printer A3
feature 3:dtf powder shaker dryer
feature 4:T-Shirt Printing Machine
feature 5:dtf transfer printer

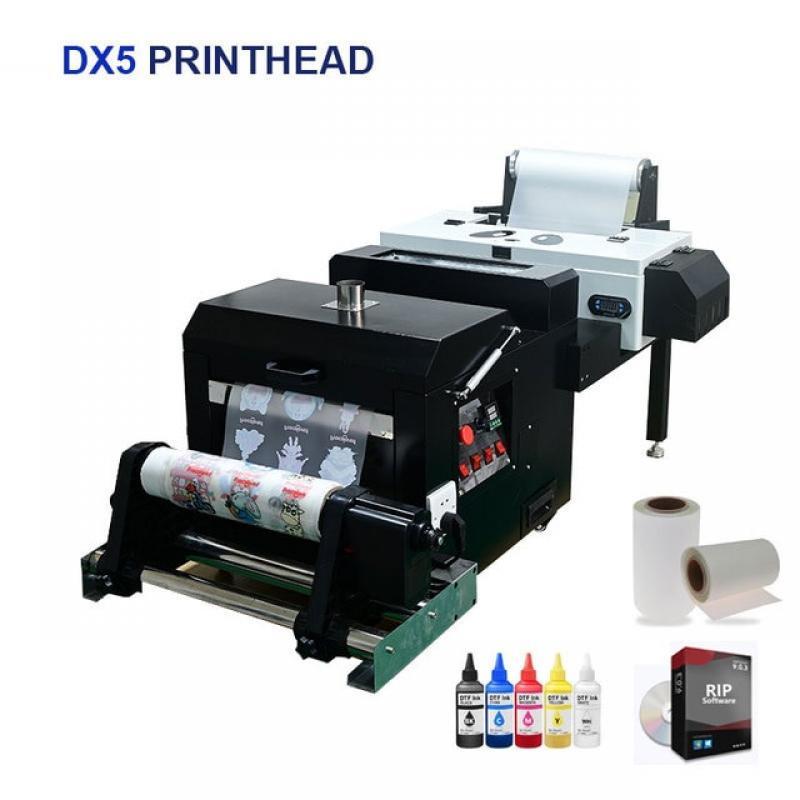

A3 Dtf Transfer Printer T-Shirt Printing Machine with Epson L1800 R1390 Dx5 Printhead with Powder Shaker Dryer for DIY Print
Features：
Support up to 2880*2880DPI
More vivid colors
Minimum ink drop: 1.5pl, 6X90=540 nozzle holes
Preheating function
Drying ink to avoid the flow of ink
White ink stirring function
can prevent white ink from settling and avoid clogging the print head
White color at the same time;
white ink and color ink can be printed at the same time to improve printing efficiency
Automatic cleaning;
using RIP software, press F12 to automatically clean the print head
Temperature and humidity display
Best printing environment make print effect better
20- 30 degrees celsius. Humidity is 30- 40%
Ultra fast printing
A3 size, need to print 7 minutes; consume 20ml ink per square meter
Upgraded roll printing
the printing speed is faster than the sheet version printer, and it can print continuously for 24 hours
Washable，NO FADE
The graphics transferred from our film to the t-shirt can be washed, we ensure that the graphics will not peel off and deform.
Stretchable
We have done hundreds of stretch tests, the pattern will not be deformed and broken
Add a tray cutter
when your pattern is printed, you can cut the film directly without manual cutting, which is more convenient
Steps to start printing every day
Powder Shaker Features：
1. Automatically shake the powder to dry. This Shaker & Dryer can help you greatly improve your DTF printing efficiency. Direct to Film printing is a revolutionary technology that not only reduces costs, but also increases the efficiency of custom production without the need for plate making. Suitable for DTF, silk screen, heat transfer business owners to carry out a new upgrade!
2. [Function] Shake powder control, dust removal control, curing temperature PID setting; far-infrared carbon fiber heating tube heating; automatic induction winding
Note: Only the blue powder shaker has automatic powder feeding and smoke filtering functions
3. [Easy to use] Large shaking width of 650mm; powder vibration and heating integrated machine for automatic induction winding.
How to choose the printerhead ?
1、R1390 Printer CMYKWw (6 color)
2、L1800 Printer CMYKWW (6 color)
If you are a newcomer, I would suggest you to apply this. It also has a continuous ink supply function, which can prevent nozzle clogging and save ink.
3、DX5 Printer CMYKWwww (8 color)
This meeting will be a bit more expensive, but the printing speed and effect are the best.
4The price of DX5 is more expensive. Its print head and motherboard are the best. The print head has 8 channels, and each channel has 180 nozzles. The colors printed will be very bright, the effect will be very good, and the speed will be better.
The L1800 and R1390 nozzle has only 6 channels, and each channel has only 90 nozzles. L1800 motherboard is better than R1390
If you are a newcomer in this industry, I would recommend you to use L1800, which is more economical. If you have very high quality requirements, then you have to choose DX5.
Specification:
Model： DTF-1390、1800、DX5
Print precision： 1440*1440DPI
Print speed： A3 format (1440dpi/7min)
Ink consumption： 1 m2 / 20 ml
Ink supply mode： 6 colors with ink supply
White ink output： Support/white color with out
Stir in white ink： Yes
Voltage/plug： Depending on the country
Sprinkler protection： Ink absorber care fluid is anti-clogging.
Print media： Leather/textiles, etc
Warranty： One-year warranty [No warranty on parts that come into contact with ink (or parts damaged by ink)]
Print nozzles： Epson R1390, L1800, DX5
Print width： 297mm
Software： RIP
Applicable systems： WindowXP、7、10
Color configuration： CMYK+WW
Temperature and humidity display： Yes (customer purchases 2032 coin cell batteries by themselves)
Heating function： Yes
Packing size： 38*84*30(with oven 84*38*48cm)
Device size： 800*330*215
Net weight/gross weight： 20KG/28KG(with oven 38KG)
Outer packaging： Export wooden box (with forklift feet) + foam
Powder Shaker Specifications：
✅Maximum width: (650mm);
✅Power: 1000W;
✅Powder shake mode: Motor powder.
✅Speed: Automatically adjusts to the speed of the printer
✅Temperature control: Temperature (0-150 °C)
✅Delivery mode: Automatic paper collection
✅Machine Size: 950*650*550mm
✅Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Dving Suit, PVC, EVA, etc.
What is in the box？
✅DTF A3 Printer
✅DTF SHAKING POWDER DRYER
✅100M pet Film（30cm*100m）
✅Initial Ink Cmykww250ml*5
✅Rip Software
✅Other Accessories
Printing step
What is DTF Printing?
The DTF process is as simple in its working as its name suggests – Print on a film and directly transfer it onto fabric. The most prominent factor that makes this process worthy of use across a larger number of people is the freedom to choose almost any fabric. Be it polyester, cotton, silk, or synthetic fibers like rayon or terrycot, the DTF printing process will work its magic on them.
Pre-requisites for DTF Printing
1. Direct to Film Printer
2. Films
3. Software
4. Hot-melt adhesive Powder
5. DTF Printing Inks
6. Curing Oven
7. Heat Press Machine
Direct to Film Printing (Basic Steps)
Step 1 – Print on Film
Instead of regular paper, insert the PET film into the printer trays. First, print the entire image in white on the PET film. After this, using the appropriate color settings in the printer, print the required image on the white image layer.
Step 2 – Powdering
This step is the application of hot-melt powder on the film that has the printed image on it. The powder is applied uniformly when the ink is wet and the excess powder needs to be removed carefully. The important thing is to ensure that the powder is evenly spread all over the printed surface on the film.
Step 3 – Melting the powder
As in the name, the powder is melted in this step. This can be done in various ways. The most common way is to put the film with the printed image and the applied powder in the Curing Oven and heat.
Step 4 – Pre-pressing
The step involves pre-pressing the fabric before the transfer of the image by the film. The fabric is kept in the heat press and pressurized under heat for about 2 to 5 seconds. This is done to flatten the fabric and also ensure de-humidification of the fabric. The pre-pressing helps in the proper transfer of the image from the film onto the fabric.
Step 5 – Transfer
This is the heart of the DTF printing process. The PET film with the image and the melted powder are placed on the pre-pressed fabric in the heat press for a strong adhesion between the film and the fabric. This process is also called ‘curing’. The curing is done at a temperature range of 160 to 170 degrees Celsius for approximately 15 to 20 seconds. The film is now firmly attached to the fabric.
Step 6 – Cold Peel
The fabric and the now attached film on it must cool down to room temperature before one pulls the film off. Since the hot melt has a nature similar to amides, as it cools down, it acts as a binder that holds the colored pigment in the inks in firm adhesion with the fibers of the fabric. Once the film is cooled, it must be peeled off the fabric, leaving the required design printed in ink over the fabric.
Product display
