Model Number:SKR MINI E3 V3.0
Item Type:Motherboard
Origin:Mainland China
Product name:SKR MINi E3 32Bit Control Board
Appearance size:103.75*70.25MM
Master Chip:STM32G0B1RET6
Power input:DC 12/24V
Communication interface:USB Micro B type
Motor driver:TMC2209 UART mode
For:Ender 3, Ender 3 pro, Ender 5, CR10 Printer
Stock:In Stock
Gifts are limited to orders shipped from local warehouses in China. The number is limited. Gifts may be replaced randomly. If you are not sure whether your order has gifts, please contact us to verify!
SKR MINI E3 V3.0 With cable
(length:500mm)
： Choose the option with cable to use directly with the original screen of ender 3 v2
The SD card/TF card in the picture on the detail page is only shown as a usage scenario, and the SD card/TF card is not included in the package
Introduction：

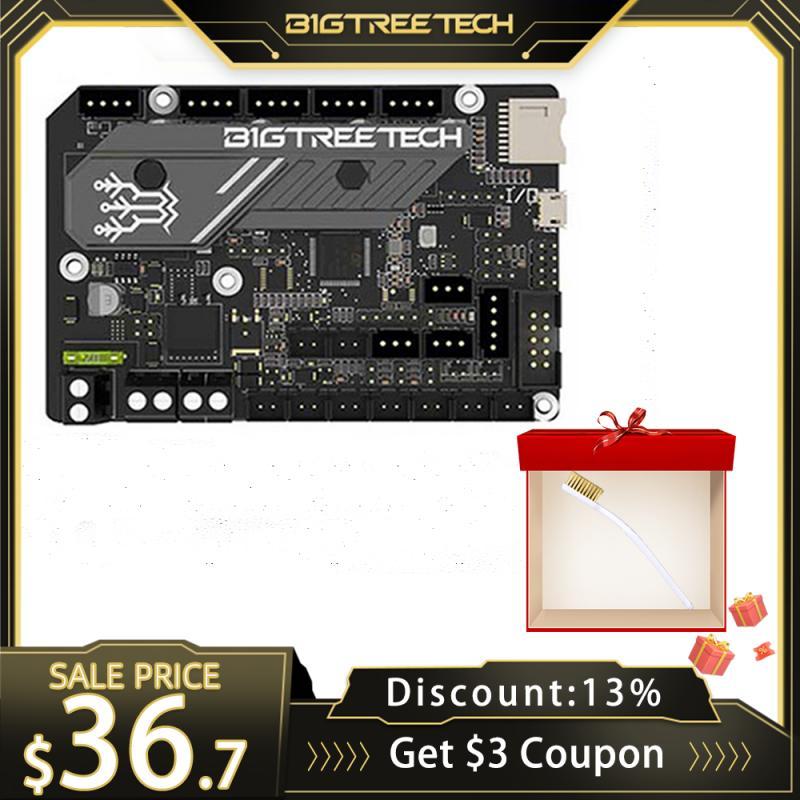

BIGTREETECH SKR MINI E3 V3.0 is an upgraded version of SKR MINI E3 V2.0.
SKR MINI E3 V3.0 is a motherboard tailored specifically for Ender3 printers, a perfect replacement for original Ender 3 printer motherboards.
DCDC5V LINK:
https://www.aliexpress.com/item/1005001419056620.html?spm=5261.ProductManageOnline.0.0.18114edfuOal59
Features:
1. Large heat dissipation area,high performance
2. 3 controllable fans
3. Support silent printing.
4. Increase thermistor protection
5. MCU:ARM Cortex-M0 STM32G0B1RET6
6. SKR MINI E3 V2.0 Updated Version
Product Size:103.75*70.25mm
Board Layer:4
MCU:STM32G0B1RET6/STM32G0B0RET6
Power Input:DC12/24V
Logic Voltage:3.3V
Motor Driver:UART mode of on-board TMC2209
Interfaces Of Motor Driver:XM,YM,ZAM,ZBM,EM
Interfaces Of Temperature Sensor:TH0,THB,2-way 100K NTC(RTD)
Matched Display Screen:2.4-inch TFT,3.5-inch TFT,Ender3 original LCD12864 screen,etc.
PC Communication Interface:USB Micro B type,easy to plug,communication baud rate 115200
File Format:G-code
Recommended Software:Cura,Simplify 3D,Pronterface,Repetier-host,Makerware
Onboard EEPROM:24C32
Double Z-axis interface：YES
CNC Fan Interfaces：3
5V Power Supply：BL Touch,TFT and RGB interfaces，DCDC5V V1.0 Module
Onboard 5V Power Supply
Onboard Sensorless Homing Function
Support firmware: Marlin, Klipper
Support: SD card offline printing
Support: online printing
Support: SPI, UART expansion, can connect to Raspberry Pi through SPI, UART, USB (Type-C) virtual serial port
Support 2 heating rod output (heating rod, hot bed). Support three-way controllable fan output. Support 4-way limit switch.
Integrated RGB color light strip drive circuit
support：BL touch,filament detection,power-off resume,automatic shutdown(PS-ON),etc
Compatible：Ender 3,Ender 3 Pro,Ender 5,CR 10
