Model Number:New
Item Type:J-head
Origin:Mainland China
MKS SERVO42C PCBA Stepper Motor 32Bit ARM Servo Close Loop SMT32 Controller 17 Servo Motors For 3D Printer Parts Kits
Position/speed/torque closed-loop, it can run at high speed without losing step.
Field-Oriented control, low noise, low vibration and low calorific.
4 Half bridge driver with 8 MOSFET, high operating efficiency.
14 Bit magnetic encoder, high angle resolution.
Support 1-256 subdivision,odd subdivision is also avaible.(Such as 11 subdivision)
Material: plastic
Color as shown
Maximum speed 1000RPM.Support motors with 0.9 degree or 1.8 degree .
The maximum printing speed can reach 150-180mm/s and easy to install and wire.
With USART interface, you can connect the computer by serial port, for parameter adjustment and query.
Specification: Board Type: MKS SERVO42C V1.0
Microprocessor: Crotex-M0+
Input Voltage: 7V-28V
Encoder: 14 Bit Magnetic Encoder
Adjustable Current Range: 0-3000mA
Subdivision:1-256(Default 16)
Maximum Speed: 1000RPM
Angle Resolution: 0.08 degree
The Frequency of Update: Position 10Khz / Velocity 10Khz/ Torque 20Khz
PCBA Size: approx 39x35.8mm /1.54x1.41in

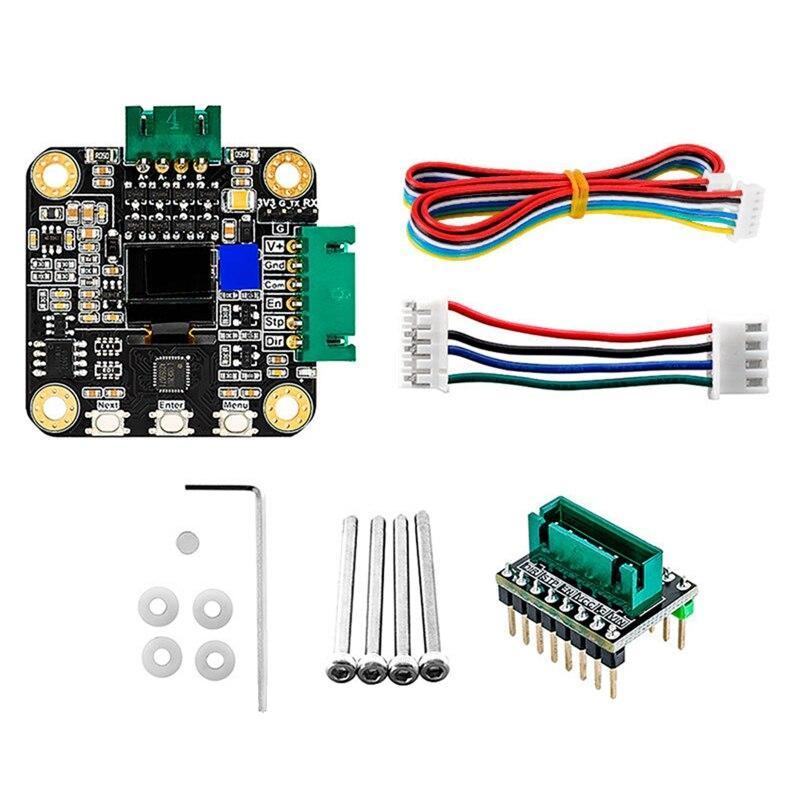

Package Contents:
1 x Stepper Motor Set
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
