Max Sequential Write:1800Mbps
Max Sequential Read:2500Mbps
Transport Protocol:NVME
Bus Type:PCIe 3.0x4
Cache:NONE
RGB:No
Cooling Fin:No
Package:Yes
Nand Flash Type:TLC
Controller:PCI Express,M.2 2280
Size:PCI-E
Interface Type:SATA
Application:Desktop,Laptop,Server,Workstation,Industrial Computer
Origin:Mainland China
Type:Internal
Style:SSD
Speed

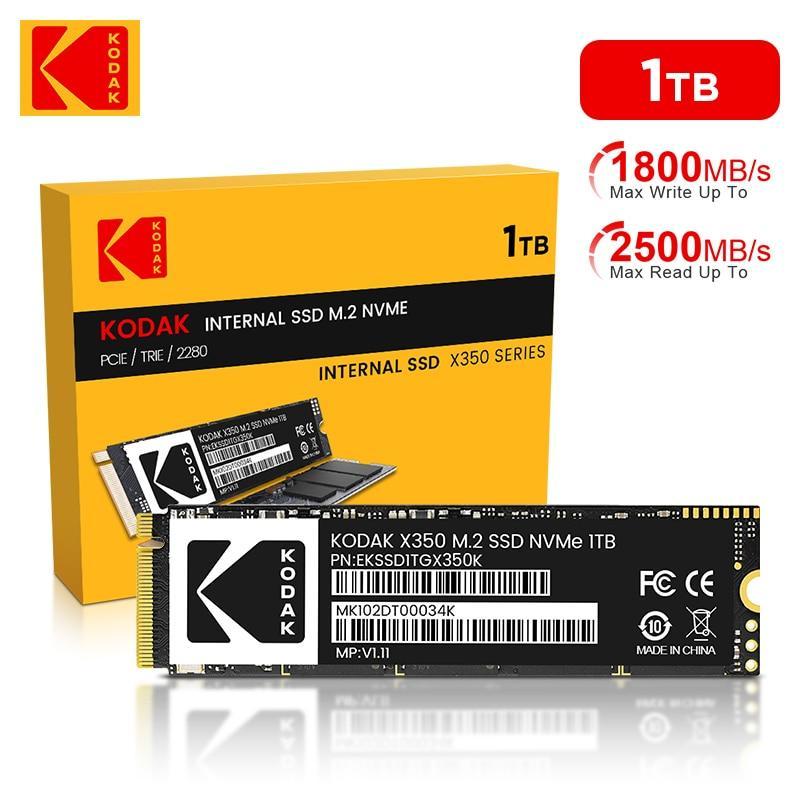

1TB : Read (max) up to 2500MB/s , Write (max.) up to 1800MB/s.
The speed test is based on the latest 64-bit version of CristaldiskMark, which will fluctuate depending on the configuration, for reference only Speed is depend on host device, interface, usage conditions and the type of your device. Data from offical website.
TBW :
1TB: 3000 TB.
TBW(TeraBytes Written)is a measurement of SSD's expected lifespan. which represents the amount of data written to the device. - TBW may differ according to platform and user behavior, NAND endurance cycles, and write amplification (WAF) .
Feature:
Support System: windows 7,8,10.Linux v.2.6.x+, Chrome OS .
Support Device:Computer/Laptop/Server.
Memory management: ECC (Error Correction Code) .
Mean Time Between Failure (MTBF): 2,000,000 hours.
Interface type: M.2 2280/Pcie gen3 x4.M key.
Flash Type: TLC 3D NAND/NVME .
Form factor: 80.0×22×3.58mm.
Temperature: Operation: 0°C ~ 70°C, Storage: -40°C ~ 85°C.
Static and dynamic:
1. Bad block management.
2. TRIM management.
3. SMART management/Over-Provision/Low power management.
Warranty:3 Years from Kodak.
About capacity:
1TB Approximately 930GB.
Vendors are using decimal arithmetic: 1MB = 1000KB, 1G = 1000MB calculated, but the operating system is using binary arithmetic: 1MB = 1024KB, 1GB = 1024MB. So there are some differences between display capacity and nominal capacity of flash memory products
