Supporting Hard Drive Capacity:4TB
External Interface:USB
Package:Yes
Internal Interface:M.2
Case Material:Aluminum
Size:1.8"
Model Number:M232C3-G2
Origin:Mainland China
Item:M.2 SSD Case
Transfer rate:10Gbps
Compatible Size:2280mm
NVMe Model:Support NVMe PCIE M2 SSD
Compatible with:NVMe SSD
Suitable for:USB3.2 GEN2
Continuous write speed:up to 1000MB/s
Maximum read speed:up to 10Gbps
System Compatibility:Windows / Mac OS/ Linux
Color:Silver/Gold/Grey
2 in 1 Cable:USB C to C /USB C to A
Produt Name 1:M2 SSD case
Produt Name 2:NVMe SSD Enclosure
Produt Name 3:M.2 Enclosure
Produt Name 4:NVMe m.2 box
Produt Name 5:M.2 ssd case
Support 1:Dropshipping
Support 2:Wholesale
Product:10Gbps M.2 SSD Case
Produt Name 6:ssd m2 nvme case
Produt Name 8:usb nvme
Produt Name 9:m2 ssd case
Produt Name 11:USB3.2 GEN2 ssd case
Produt Name 12:nvme case
[Travel season]
South Korea
tens of billions of subsidies SD code:
20-2：AEKR2Q
50-6：AEKR6Q
80-10：AEKR10Q
Important Note
There are Five models optional, please confirm your M.2 SSD protocol before ordering.

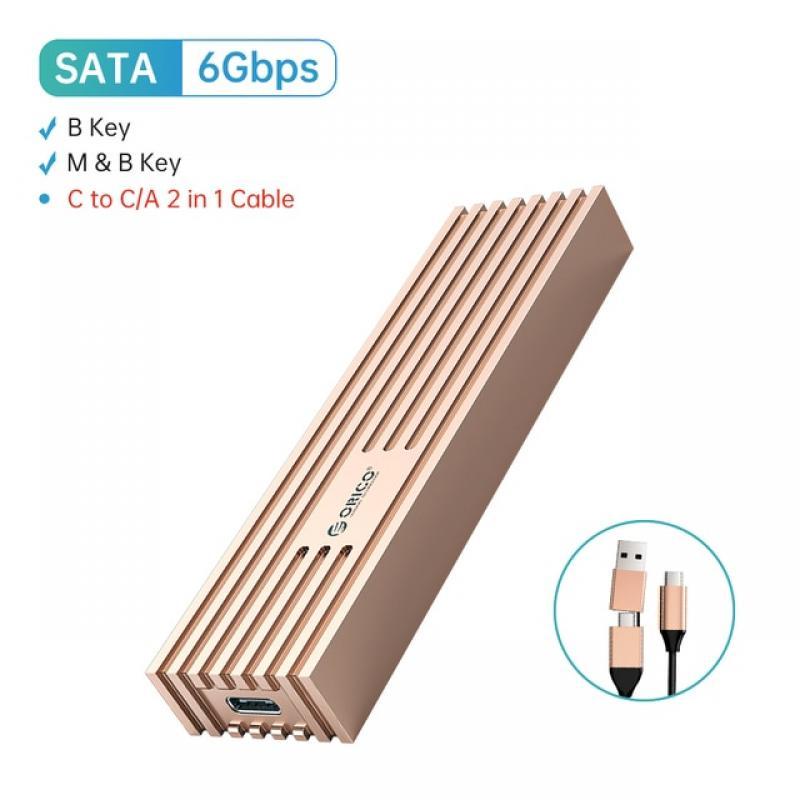

(1)SATA 6Gbps Model
Only support NGFF SATA protocol B key / M&B Key SSD, with 30cm type-c to USB 3.0 cable.
(2)NVMe 10Gbps Model
Only support NVME PCI-E protocol M key / M&B Key SSD, with 30cm
C to C/A 2-in-1 date Cable.
(3)SATA&NVMe Dual Protocol Model
Support M Key(NVMe Protocol) / M&B Key (both NVME and SATA Protocol) SSD, not compatible with B Key SSD
, with 30cm
C to C/A 2-in-1 date Cable.
(4)NVMe 20Gbps Model
Only support NVME PCI-E protocol M key / M&B Key SSD
,
with 30cm
C to C/A 2-in-1 date Cable.
To achieve 2000MB/S for 20Gbps solid state drive enclosure, the device needs to support USB3.2 GEN2*2 transmission protocol.
MAC reach 1000mb/s only, advice to choose 10Gbps.
(5)USB4.0 40Gbps Model
Only support NVME PCI-E protocol M key / M&B Key SSD
,
with 30cm
C to C/A 2-in-1 date Cable.
Recommended SSD: WD SN750 /Samsung 970 EVO / Samsung 980 Pro / SEAGATE 510 series (if your CPU is Apple M1, please use WD SN750 for fast speed)
Not recommended SSD: Samsung 970 EVO plus / Samsung PM981 / WD SN850 / ADATA / CRUCIAL
PS: All USB4.0 40Gbps models are metal screws, other 6Gbps, 10Gbps, 20Gbps and dual protocol models are rubber screws.
Product Specification:
【Upgrade Cooling Efficiency-Cooling Vest】
The M.2 enclosure has been professionally designed, and a new metal heat dissipation vest with excellent heat dissipation effect is added, which wraps the SSD in multiple directions, and accurately guides the heat to the enclosure shell to dissipate heat. The heat dissipation efficiency is 20% higher than that of traditional metal sheets.
【USB3.2 Gen2 10Gbps Speed】
M2 ssd adapter up to 10Gbps. High-speed M.2 NVME to USB 3.1 Gen2, perfect solution for data transfer and backup, the actual transfer speed depends on the speed of the SSD, the type of USB port, computer performance and NVMe media used, etc. The theoretical reading can reach 1200MB/s, and the HD movie transmission only takes 2.5 seconds.
【Universal Compatible SSD Enclosure】
ORICO 10Gbps M.2 SSD Enclosure is compatible with M Key or M&B Key's 2230 2242 2260 2280 M.2 PCIe NVMe SSD. SSD enclosure support Windows, Mac OS and Linux. Plug and play, no additional drivers or software required.
【2 in 1 Cable】
This USB data cable has 2 output ports, USB C-A and USB C-C(10Gbps), which can be connected to computers, mobile phones, game consoles and other devices at will. The wire is 30cm long, which is more flexible and stable to use and has a longer life.
【High-quality Main Control Chip】
ORICO nvme ssd enclosure Using high-performance controller IC, supports UASP acceleration protocol and Trim, SMART functions, which can effectively improve SSD speed, protect data operation, and extend SSD life.
Package Included:
1. M.2 SSD Enclosure*1
2. Package Box
3. 2-in-1 USB-A/Type-C Cable*1
4. Cooling Vest*1
5. Thermal Pad*1
6. Screw*2
7. Screwdriver*1
8. Instruction Book
Warm Reminder
- M.2 SSD is NOT included.
- NVMe-model case is not compatible with NGFF SATA M.2 SSD, vice versa.
- It is normal that the aluminum case heats up when using, and it doesn't affect normal use.
